Fits VW PASSAT B6 (3C2) 2.0 TDI 16V
(2005)
Important compatibility info
| Length | 130 mm |
| Thread Size | M10x1,0 |
| Voltage | 4.4 V |
| Spanner Size | 10 mm |
| Port / Connector type | 4 mm PIN |
| Fitting Depth | 28 mm |
| Current Strength | 25 A |
| Glow Plug Type | after-glow capable, Pencil-type Glow Plug |
| Cone Pitch | 63 |
| Tightening torque to | 20 Nm |
| Tightening torque from | 15 Nm |
| Failure Moment | 35 Nm |
| Type | Glow Plug |
| Function | Glow Plug |
| Replaces | GE115 |
| Extra Description | ISS |
Additional Information
Technical Information
Cover glow plug thread and shaft with mounting grease, (GKF Cover glow plug thread and -shaft with mounting grease, (GKF 01 - Order No. 0 890 300 034), before fitting to enable easier removal and prevent corrosion.
£38.93
Important compatibility info
| Voltage | 12 V |
| Function | Control Unit, glow time |
| Type | Control Unit, glow time |
£69.98
Important compatibility info
| Weight | 0.030 kg |
| Length | 118 mm |
| Function | Glow Plug |
| Spanner Size | 8 |
| Voltage | 4.4 V |
| External Thread Size | M8 x 1 |
| Type | Glow Plug |
| Glow Plug Type | after-glow capable |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£41.56
Important compatibility info
| Weight | 0.023 kg |
| External Thread Size | M8 x 1 |
| Function | Glow Plug |
| Glow Plug Type | Metal glow plug |
| Fitting Depth | 30 mm |
| Spanner Size | 8 |
| Voltage | 7 V |
| Length | 117 mm |
| Type | Glow Plug |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£73.60
Important compatibility info
| Voltage | 4.4 V |
| Function | Glow Plug |
| Length | 118 mm |
| Extra Description | Duraterm high speed |
| Type | Glow Plug |
| Spanner Size | 8 |
| Port / Connector type | PIN |
| Fitting Depth | 30 mm |
| Cone Pitch | 93 |
| Tightening torque to | 10 Nm |
| Tightening torque from | 0 Nm |
| Glow Plug Type | Rod Glow Plug |
| Thread Size | M 8 x 1,0 |
£45.31
Important compatibility info
| Additional Information 2 | without pressure sensor |
| Function | Glow Plug |
| Glow Plug Type | Rod Glow Plug |
| Length | 130 mm |
| Extra Description | Duraterm high speed |
| Type | Glow Plug |
| Thread Size | M 10 x 1 |
| Voltage | 4.4 V |
| Spanner Size | 10 |
| Port / Connector type | PIN |
| Fitting Depth | 28 mm |
| Cone Pitch | 63 |
| Tightening torque to | 15 Nm |
| Tightening torque from | 10 Nm |
£36.71
Important compatibility info
| Voltage | 7 V |
| Spanner Size | 8 |
| Port / Connector type | PIN |
| Fitting Depth | 30 mm |
| Cone Pitch | 93 |
| Tightening torque to | 10 Nm |
| Glow Plug Type | Pencil-type Glow Plug, after-glow capable |
| Function | Glow Plug |
| Extra Description | Duraterm |
| Type | Glow Plug |
| Thread Size | M 8 x 1,0 |
| Length | 120 mm |
| Tightening torque from | 6 Nm |
£83.12
Important compatibility info
| Function | Control Unit, glow time |
| Type | Control Unit, glow time |
£28.21
Important compatibility info
| Function | Control Unit, glow time |
| Type | Control Unit, glow time |
£43.80
Important compatibility info
| Current Strength | 30 A |
| Temperature range to | 100 °C |
| Temperature range from | -40 °C |
| Relay function | Normally open contact |
| Protection Type (IP Code) | IP5K4 |
| Resistance | 16 Ohm |
| Number of Poles | 5 -pin connector |
| Voltage | 12 V |
| Type | Multifunctional Relay |
| Function | Multifunctional Relay |
| Replaces | 0332207307; 0332207321 |
£6.22
Important compatibility info
| Temperature range from | -40 °C |
| Temperature range to | 125 °C |
| Relay function | Normally open contact |
| Current Strength | 70 A |
| Number of Poles | 5 -pin connector |
| Type | Multifunctional Relay |
| Function | Multifunctional Relay |
| Voltage | 12 V |
| Combi Switch Function | without light dimmer function |
| Additional Information | with holder |
£6.37
Important compatibility info
| Type | Control Unit, glow time |
| Function | Control Unit, glow time |
| for OE number | 038907281B |
£50.36
Important compatibility info
| Tightening torque to | 12 Nm |
| Tightening torque from | 10 Nm |
| for OE number | 059963319J |
| Weight | 35.3 g |
| Port / Connector type | Pin |
| Overall Length | 126.3 mm |
| Thread Size | M10x1.0 |
| Voltage | 4.4 V |
| Spanner Size | 10 |
| Type | Glow Plug |
| Function | Glow Plug |
| Version | Instant heating |
| alternative item | - |
£51.64
Important compatibility info
| Type | Glow Plug |
| Voltage | 7 V |
| Thread Size | M8x1.0 |
| Weight | 21 g |
| Tightening torque to | 10 Nm |
| Overall Length | 116 mm |
| Function | Glow Plug |
| Spanner Size | 8 |
| Port / Connector type | Pin |
| Version | Instant heating |
| Tightening torque from | 8 Nm |
| Cone Pitch | 93 |
| alternative item | - |
£59.56
Important compatibility info
| Number of Connectors / Ports | 9 |
| Function | Relay, glow plug system |
| Weight | 0.054 kg |
| Relay Number | 457 |
| Type | Relay, glow plug system |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£53.51
Important compatibility info
| Weight | 0.07 kg |
| Number of Connectors / Ports | 9 |
| Function | Relay, glow plug system |
| Type | Relay, glow plug system |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£53.51
Important compatibility info
| External Thread Size | M8 x 1 |
| Function | Glow Plug |
| Type | Glow Plug |
| Glow Plug Type | after-glow capable |
| Voltage | 4.4 V |
| Spanner Size | 8 |
| Length | 30 mm |
| Weight | 0.020 kg |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£41.61
Important compatibility info
| Weight | 0.04 kg |
| Length | 130 mm |
| Voltage | 4.4 V |
| Type | Glow Plug |
| Glow Plug Type | Metal glow plug |
| Additional Information 2 | without pressure sensor |
| External Thread Size | M10 x 1 |
| Function | Glow Plug |
| Spanner Size | 10 |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£41.82
Important compatibility info
| Glow Plug Type | Metal glow plug |
| Other Part Number | YE14 |
| Thread Size | M8 x 1,0 |
| Voltage | 4.4 V |
| Spanner Size | 8 mm |
| Overall Length | 118.0 mm |
| Port / Connector type | PIN |
| Fitting Depth | 30.0 mm |
| Resistance | 0.5 Ohm |
| Current Strength | 7.5 A |
| Function | Glow Plug |
| Type | Glow Plug |
£45.90

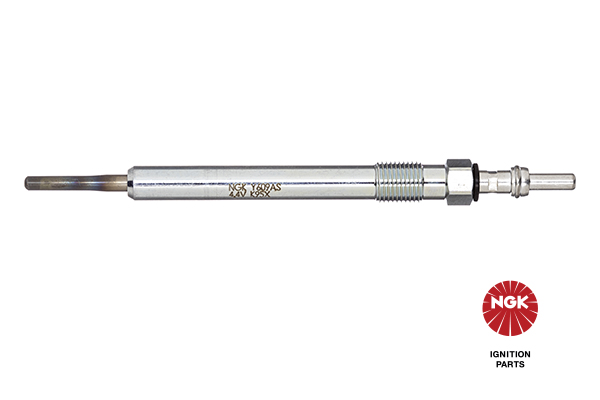

Important compatibility info
| Other Part Number | Y-609AS |
| Thread Size | M10 x 1,0 |
| Voltage | 4.4 V |
| Spanner Size | 10 mm |
| Overall Length | 127.7 mm |
| Port / Connector type | PIN |
| Fitting Depth | 24.0 mm |
| Resistance | 0.4 Ohm |
| Current Strength | 7.5 A |
| Glow Plug Type | Metal glow plug |
| Additional Information 2 | without pressure sensor |
| Function | Glow Plug |
| Type | Glow Plug |
| Replaced by | 8926 |
£52.67
Important compatibility info
| Additional Information 2 | without pressure sensor |
| Other Part Number | Y1002AS |
| Thread Size | M10 x 1,0 |
| Voltage | 4.4 V |
| Spanner Size | 10 mm |
| Overall Length | 130 mm |
| Port / Connector type | PIN |
| Fitting Depth | 28 mm |
| Resistance | 0.5 Ohm |
| Replaces | 6074 |
| Glow Plug Type | Metal glow plug |
| Function | Glow Plug |
| Type | Glow Plug |
£52.71
Important compatibility info
| Other Part Number | CZ304 |
| Thread Size | M8 x 1,0 |
| Voltage | 7.0 V |
| Spanner Size | 8 mm |
| Overall Length | 117.0 mm |
| Port / Connector type | PIN |
| Fitting Depth | 30.0 mm |
| Resistance | 0.3 Ohm |
| Current Strength | 7.0 A |
| Glow Plug Type | Ceramic Glow Plug |
| Function | Glow Plug |
| Type | Glow Plug |
£112.38
What are glow plugs?
Glow plugs are specific to diesel engines. Their task is to help start the combustion process of the diesel fuel. Diesel fuel does not ignite with a spark like petrol does but rather it ignites when exposed to heat. When starting a diesel engine the glow plugs heat up until they are red hot. When diesel fuel is injected into the piston chamber it makes contact with the glow plugs which ignites. This starts the combustion process.
How do I choose the correct glow plugs?
Glow plugs are specific to each engine as they need to match the ignition system and the fitment to the engine. The best way to obtain the correct glow plugs for your vehicle is to obtain the original (OE) part number and use that to search for parts that match it.
Obtaining the OE part number is not always possible so here are some factors to consider when selecting replacement glow plugs:
Engine code
Vehicle manufacture date (this is not the date the vehicle was registered but the date it was made
Engine number sequence (up to or after as specific number/letter
VIN (chassis number) sequence (up to or after as specific number/letter
Please take note of all compatibility information listed with a part that is shown as correct
What brand of glow plugs should I choose?
Glow plugs work in a high heat and pressure environment so better quality parts inevitably will perform better and last longer. Bosch make glow plugs for the original car manufacturers which makes them premium quality. This is also reflected in the price point. There are other brands that offer high quality replacement glow plugs and in some cases may have a longer warranty period than premium brands but at a lower cost. Febi Bilstein, Blue Print, Lucas and NGK have a great reputation so which brand you choose is largely down to your budget and the brand you feel comfortable with.
How can I tell my glow plugs need replacing?
It is not always apparent that there are issues with your glow plugs unless there is a specific warning on the dash of your vehicle. If you are not sure we would always recommend that you have a qualified mechanic diagnose issues with your engine.
Here are some symptoms of a faulty glow plug:
Engine struggles to start or will not start
Engine misfires
The engine has a rough idle
Reduced fuel economy
Decrease in engine power
Excessive exhaust smoke
Glow plug error on the dash
