Fits MITSUBISHI CARISMA Saloon (DA_) 1.8 16V GDI (DA2A)
(1997)
Categories
Important compatibility info
| Outer diameter | 21 mm |
| Material | Steel |
| Function | Wheel Nut |
| Wheel Fastening | Conical Seat F |
| Quality/ Grade | 8 |
| Tightening Torque | 110 Nm |
| Bolt Head/Nut Design | Male Hex |
| Surface | Zinc-coated |
| Spanner Size | 21 |
| Thickness | 17 mm |
| Weight | 0.021 kg |
| Internal Thread Size | M12 x 1,5 |
| Type | Wheel Nut |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£4.40
Important compatibility info
| External Thread Size | M12 x 1,5 |
| Material | Steel |
| Knurl Diameter | 14.3 mm |
| Screw length below head | 42 mm |
| Function | Wheel Stud |
| Bolt Head Diameter | 18 mm |
| Quality/ Grade | 10.9 |
| Thread Length | 30 mm |
| Surface | Zinc-coated |
| Length | 47 mm |
| Weight | 0.04 kg |
| Type | Wheel Stud |
| Bolt / Nut Version | Knurled Bolt |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£5.94
Important compatibility info
| Bolt / Nut Version | Cap Nut, with lockwasher |
| Outer diameter | 30 mm |
| Material | Steel |
| Rims | for light alloy rims |
| Internal Thread Size | M12 x 1,5 |
| Weight | 0.08 kg |
| Placement on Vehicle | Front Axle, Rear Axle |
| Thickness | 37.5 mm |
| Spanner Size | 21 |
| Surface | Chromed |
| Bolt Head/Nut Design | Male Hex |
| Quality/ Grade | 8 |
| Wheel Fastening | Flat Seat |
| Function | Wheel Nut |
| Type | Wheel Nut |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£6.51
Important compatibility info
| Function | Wheel Nut |
| Wheel Fastening | Conical Seat F |
| Surface | Chromed |
| Spanner Size | 17, 19 |
| Thickness | 26 mm |
| Placement on Vehicle | Front Axle, Rear Axle |
| for OE number | M115 |
| Outer diameter | 23.7 mm |
| Material | Steel |
| Quality/ Grade | 8 |
| Type | Wheel Nut |
| Weight | 0.26 kg |
| Lockable | Lockable |
| Internal Thread Size | M12 x 1,5 |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£18.51
Important compatibility info
| Inner diameter 1 | 40 mm |
| Outer diameter 1 | 80 mm |
| Width 1 | 36 mm |
| Function | Wheel Bearing Kit |
| Type | Wheel Bearing Kit |
| Placement on Vehicle | Front Axle |
| Bearing Code | Gen 1 |
£32.38
Important compatibility info
| Inner diameter 1 | 40 mm |
| Outer diameter 1 | 80 mm |
| Width 1 | 36 mm |
| Function | Wheel Bearing Kit |
| Type | Wheel Bearing Kit |
| Placement on Vehicle | Front Axle |
| Bearing Code | Gen 1 |
£32.38

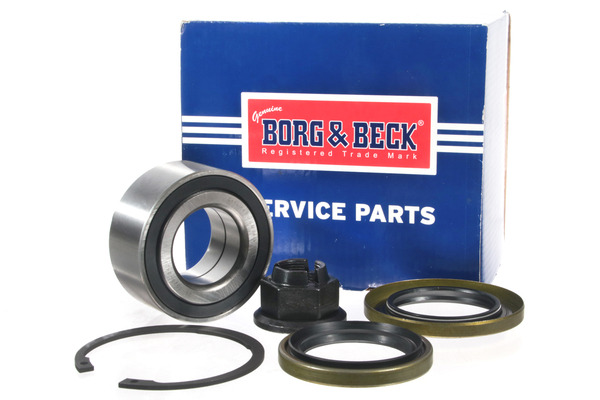

Important compatibility info
| Weight | 0.85 kg |
| Placement on Vehicle | Front Axle Left, Front Axle Right |
| Width | 34 mm |
| Outer diameter | 80 mm |
| Additional Information 2 | with retaining ring, with shaft seal |
| Type | Wheel Bearing Kit |
| Function | Wheel Bearing Kit |
| Inner diameter | 40 mm |
| Bearing Type | Angular Ball Bearing |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£32.79
Important compatibility info
| Function | Wheel Bearing Kit |
| Type | Wheel Bearing Kit |
| Inner diameter | 39.9 mm |
| Outer diameter | 80 mm |
| Placement on Vehicle | Front Axle |
| Width | 34 mm |
| Additional Information | Photo corresponds to scope of supply |
£35.40

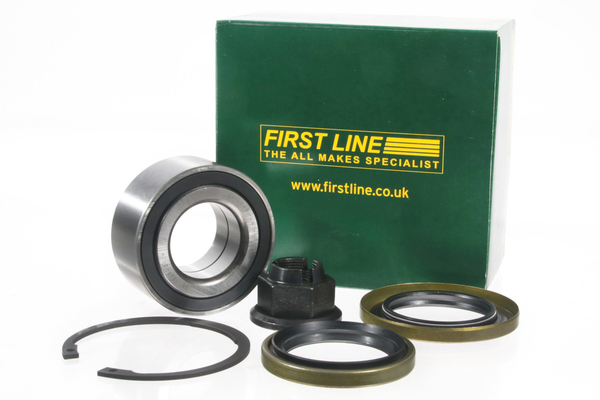

Important compatibility info
| Placement on Vehicle | Front Axle Left, Front Axle Right |
| Type | Wheel Bearing Kit |
| Function | Wheel Bearing Kit |
| Inner diameter | 40 mm |
| Weight | 0.85 kg |
| Bearing Type | Angular Ball Bearing |
| Width | 34 mm |
| Outer diameter | 80 mm |
| Additional Information 2 | with shaft seal, with retaining ring |
| Replaces | ADC48222 |
Additional Information
General Information
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
£36.42
Important compatibility info
| Width | 70 mm |
| Outer diameter | 125 mm |
| Additional Information 2 | with wheel hub |
| Inner diameter | 28 mm |
| Rim Hole Number | 4 -Hole |
| Function | Wheel Bearing Kit |
| Type | Wheel Bearing Kit |
| Placement on Vehicle | Rear Axle |
£43.40
Important compatibility info
| Placement on Vehicle | Rear Axle |
| Width | 71.9 mm |
| Inner diameter | 30 mm |
| Function | Wheel Bearing Kit |
| Outer diameter | 140.1 mm |
| Type | Wheel Bearing Kit |
| Additional Information | Photo corresponds to scope of supply |
£49.30
Important compatibility info
| Placement on Vehicle | Rear Axle |
| Flange Diameter | 140 mm |
| Rim Hole Number | 4 -Hole |
| Type | Wheel Bearing Kit |
| Function | Wheel Bearing Kit |
Additional Information
- 1x SKF Bearing (SKF02032)
- 1x SKF Service Book (SKF03711)
- 1x SKF Nut (SKF05219)
£72.06
Car wheel parts
When it comes to the smooth operation of a vehicle, the condition of its wheel bearings, wheel hubs, and other wheel parts are critical. The parts associated with the cars wheels are:
Wheel bearing
Wheel hub
Wheel studs
How do I choose the correct wheel parts?
Different safety and design features can make selecting the correct wheel parts tricky. We advise to check if compatibility notes are listed next to a part that is shown as correct for your vehicle. These may include:
For vehicle with or without ABS
For vehicle with or without ESP / TCS / DSG / ESC (traction control)
Wheel size
Vehicle manufacture date (this is not the date the vehicle was registered but the date it was made)
VIN (chassis number) sequence (up to or after as specific number/letter
Length, width, depth of the part (length is particularly important with wheel studs)
What brand of wheel parts should I choose?
Both cost and quality are paramount when selecting a brand for replacement wheel parts. Bosch have world renown quality however brand names such as Blue Print, Borg & Beck, Febi and SKF offer long warranties which indicates the quality of product.
How can I tell my wheel parts needs replacing?
Some of the symptoms of failing wheel parts are:
There is a humming noise (normally coming from the corner of the vehicle that has the fault)
The wheel is loose (can be wobbled)
The steering feels loose
Uneven tire wear
The steering wheel vibrates while driving.
There is an ABS fault
The vehicle pulls to one side when braking (this may also indicate a brake system problem)
