Important compatibility info
Replaces | F01C600250 |
Function | Delivery Module, urea injection |
Type | Delivery Module, urea injection |

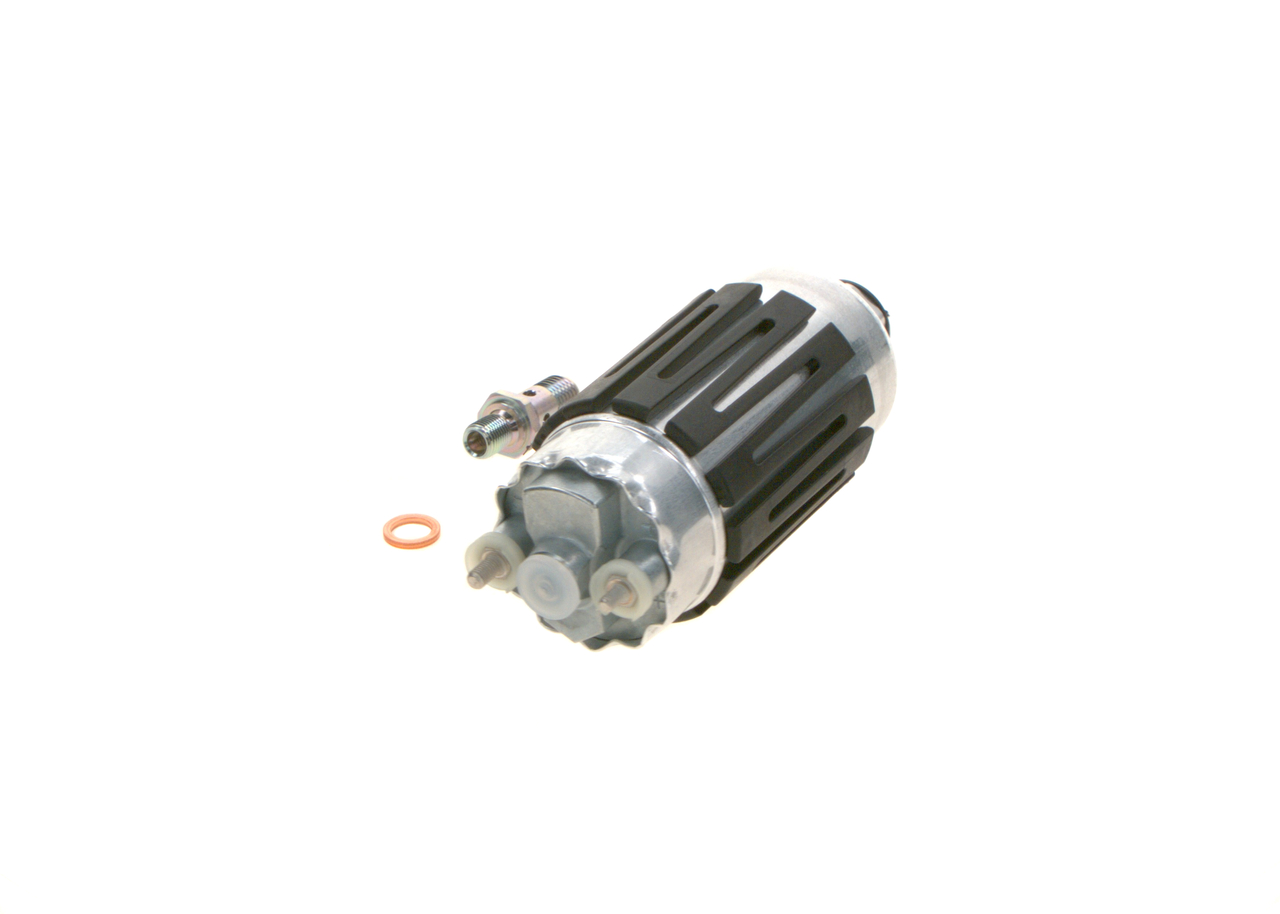

Important compatibility info
Placement on Vehicle | Fuel Line |
Operating Mode | Electric |
Function | Fuel Pump |
Type | Fuel Pump |
Replaces | 9580234005 |
Important compatibility info
Placement on Vehicle | Fuel Line |
Operating Mode | Electric |
Function | Fuel Pump |
Type | Fuel Pump |
Replaces | 9580234005 |

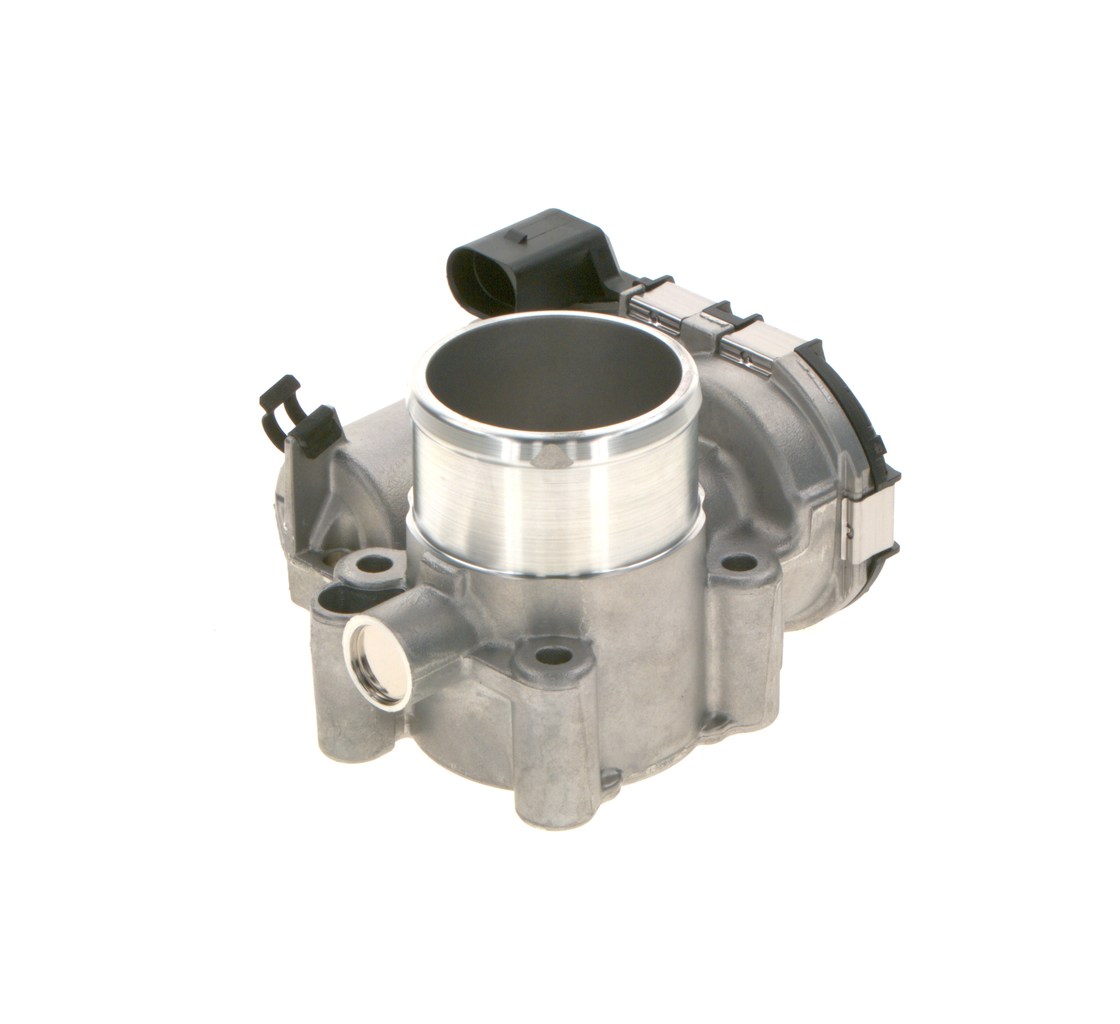

Important compatibility info
Function | Throttle Body |
Type | Throttle Body |
Important compatibility info
Function | Throttle Body |
Type | Throttle Body |
Important compatibility info
Rated Power | 1.4 kW |
Voltage | 12 V |
Function | Starter |
Fastening hole angle measurement [Degree] | 38 ° |
Jaw opening angle measurement [Degree] | 120 ° |
Starter Type | Self-supporting |
Bore Diameter 2 | 10.5 mm |
Pinion Rest Position | 19 mm |
Connecting Angle | 38 ° |
Clamp | 30,50 |
Position / Degree | links ° |
Number of Thread Bores | 1 |
Flange Diameter | 82.5 mm |
Number of mounting bores | 1 |
Rotation Direction | Clockwise rotation |
Number of Teeth | 9 |
Thread Size | M12x1,5 |
Length | 241 mm |
Type | Starter |
Important compatibility info
Rated Power | 1.4 kW |
Voltage | 12 V |
Function | Starter |
Fastening hole angle measurement [Degree] | 38 ° |
Jaw opening angle measurement [Degree] | 120 ° |
Starter Type | Self-supporting |
Bore Diameter 2 | 10.5 mm |
Pinion Rest Position | 19 mm |
Connecting Angle | 38 ° |
Clamp | 30,50 |
Position / Degree | links ° |
Number of Thread Bores | 1 |
Flange Diameter | 82.5 mm |
Number of mounting bores | 1 |
Rotation Direction | Clockwise rotation |
Number of Teeth | 9 |
Thread Size | M12x1,5 |
Length | 241 mm |
Type | Starter |
Important compatibility info
Voltage | 14 V |
Alternator Charge Current | 70 A |
Recommended additional repairs | V-Belt/V-Ribbed Belt |
Alternator type | excl. vacuum pump |
Type | Alternator |
Function | Alternator |
Distance from pulley to alternator | 92 mm |
Clamp | D+(M5), B+(M8) |
Fastening Type | Single pivoted lever |
Number of grooves | 6 |
Belt Pulley Diameter | 63 mm |
Rotation Direction | Clockwise rotation |
Pulleys | with multi-belt pulley |
Length | 157 mm |
Important compatibility info
Voltage | 14 V |
Alternator Charge Current | 70 A |
Recommended additional repairs | V-Belt/V-Ribbed Belt |
Alternator type | excl. vacuum pump |
Type | Alternator |
Function | Alternator |
Distance from pulley to alternator | 92 mm |
Clamp | D+(M5), B+(M8) |
Fastening Type | Single pivoted lever |
Number of grooves | 6 |
Belt Pulley Diameter | 63 mm |
Rotation Direction | Clockwise rotation |
Pulleys | with multi-belt pulley |
Length | 157 mm |
Important compatibility info
Rated Power | 1.8 kW |
Fastening hole angle measurement [Degree] | 50 ° |
Jaw opening angle measurement [Degree] | 0 ° |
Starter Type | Self-supporting |
Bore Diameter 3 | 9 mm |
Bore Diameter 2 | 9 mm |
Pinion Rest Position | -0.53 mm |
Connecting Angle | 50 ° |
Clamp | 50 |
Position / Degree | rechts ° |
Flange Diameter | 69 mm |
Number of mounting bores | 3 |
Rotation Direction | Clockwise rotation |
Bore Diameter | 9 mm |
Length | 241 mm |
Voltage | 12 V |
Function | Starter |
Type | Starter |
Number of Teeth | 11. 10 |
Important compatibility info
Rated Power | 1.8 kW |
Fastening hole angle measurement [Degree] | 50 ° |
Jaw opening angle measurement [Degree] | 0 ° |
Starter Type | Self-supporting |
Bore Diameter 3 | 9 mm |
Bore Diameter 2 | 9 mm |
Pinion Rest Position | -0.53 mm |
Connecting Angle | 50 ° |
Clamp | 50 |
Position / Degree | rechts ° |
Flange Diameter | 69 mm |
Number of mounting bores | 3 |
Rotation Direction | Clockwise rotation |
Bore Diameter | 9 mm |
Length | 241 mm |
Voltage | 12 V |
Function | Starter |
Type | Starter |
Number of Teeth | 11. 10 |
Important compatibility info
Brakes- / Drive Dynamics Articles | for ESP |
Function | Pressure Switch, brake hydraulics |
Type | Pressure Switch, brake hydraulics |
Important compatibility info
Rated Power | 1.7 kW |
Fastening hole angle measurement [Degree] | 44 ° |
Starter Type | Floating pinion |
Bore Diameter 3 | 12.5 mm |
Bore Diameter 2 | 12.5 mm |
Pinion Rest Position | 52.4 mm |
Connecting Angle | 44 ° |
Clamp | 50, 30 |
Position / Degree | links ° |
Flange Diameter | 76.2 mm |
Number of mounting bores | 3 |
Rotation Direction | Anticlockwise rotation |
Bore Diameter | 12.5 mm |
Length | 246 mm |
Voltage | 12 V |
Function | Starter |
Type | Starter |
Number of Teeth | 12. 11 |
Important compatibility info
Rated Power | 1.7 kW |
Fastening hole angle measurement [Degree] | 44 ° |
Starter Type | Floating pinion |
Bore Diameter 3 | 12.5 mm |
Bore Diameter 2 | 12.5 mm |
Pinion Rest Position | 52.4 mm |
Connecting Angle | 44 ° |
Clamp | 50, 30 |
Position / Degree | links ° |
Flange Diameter | 76.2 mm |
Number of mounting bores | 3 |
Rotation Direction | Anticlockwise rotation |
Bore Diameter | 12.5 mm |
Length | 246 mm |
Voltage | 12 V |
Function | Starter |
Type | Starter |
Number of Teeth | 12. 11 |
Important compatibility info
Pulleys | with freewheel belt pulley |
Alternator Charge Current | 90 A |
Recommended additional repairs | V-Belt/V-Ribbed Belt |
Alternator type | excl. vacuum pump |
Function | Alternator |
Distance from pulley to alternator | 42 mm |
Clamp | B1+(M8), L, DFM |
Fastening Type | Double Pivot Lever |
Number of grooves | 6 |
Belt Pulley Diameter | 54 mm |
Rotation Direction | Clockwise rotation |
Plug Type ID | PL72 |
Length | 185 mm |
Voltage | 14 V |
Type | Alternator |
Important compatibility info
Pulleys | with freewheel belt pulley |
Alternator Charge Current | 90 A |
Recommended additional repairs | V-Belt/V-Ribbed Belt |
Alternator type | excl. vacuum pump |
Function | Alternator |
Distance from pulley to alternator | 42 mm |
Clamp | B1+(M8), L, DFM |
Fastening Type | Double Pivot Lever |
Number of grooves | 6 |
Belt Pulley Diameter | 54 mm |
Rotation Direction | Clockwise rotation |
Plug Type ID | PL72 |
Length | 185 mm |
Voltage | 14 V |
Type | Alternator |
Important compatibility info
Type | Starter |
Function | Starter |
Pinion Rest Position | 19.8 mm |
Rated Power | 1.5 kW |
Rotation Direction | Clockwise rotation |
Voltage | 12 V |
Length | 200 mm |
Thread Size | M10X1,5 |
Number of Teeth | 11 |
Thread Measurement 1 | M10X1,5 |
Thread Measurement 2 | M10X1,5 |
Flange Diameter | 62 mm |
Number of Thread Bores | 3 |
Position / Degree | rechts ° |
Clamp | 30 |
Connecting Angle | 29 ° |
Starter Type | Self-supporting |
Jaw opening angle measurement [Degree] | 60 ° |
Fastening hole angle measurement [Degree] | 29 ° |
Important compatibility info
Type | Starter |
Function | Starter |
Pinion Rest Position | 19.8 mm |
Rated Power | 1.5 kW |
Rotation Direction | Clockwise rotation |
Voltage | 12 V |
Length | 200 mm |
Thread Size | M10X1,5 |
Number of Teeth | 11 |
Thread Measurement 1 | M10X1,5 |
Thread Measurement 2 | M10X1,5 |
Flange Diameter | 62 mm |
Number of Thread Bores | 3 |
Position / Degree | rechts ° |
Clamp | 30 |
Connecting Angle | 29 ° |
Starter Type | Self-supporting |
Jaw opening angle measurement [Degree] | 60 ° |
Fastening hole angle measurement [Degree] | 29 ° |

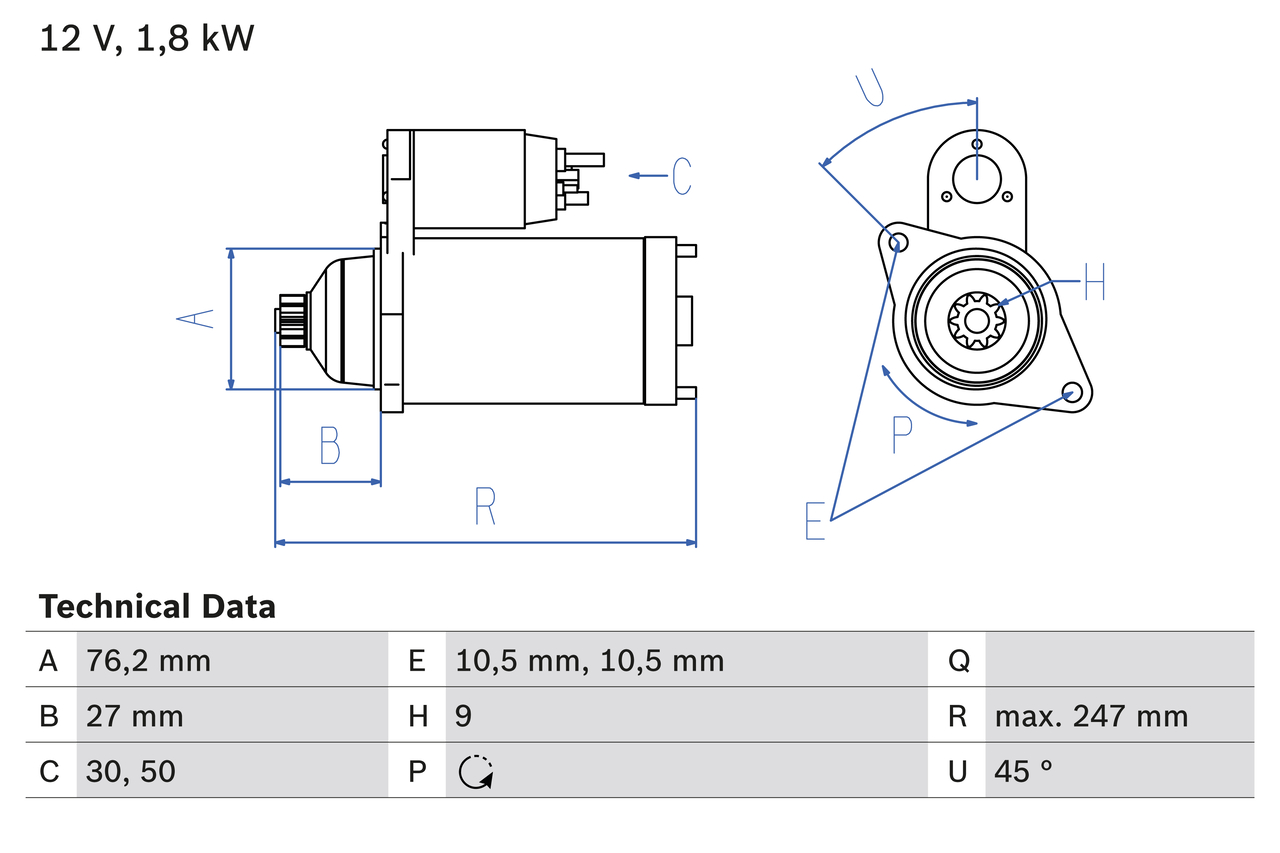

Important compatibility info
Voltage | 12 V |
Rated Power | 1.8 kW |
Type | Starter |
Function | Starter |
Fastening hole angle measurement [Degree] | 45 ° |
Starter Type | Floating pinion |
Bore Diameter 2 | 10.5 mm |
Pinion Rest Position | 27 mm |
Connecting Angle | 45 ° |
Clamp | 50, 30 |
Position / Degree | links ° |
Flange Diameter | 76.2 mm |
Number of mounting bores | 2 |
Rotation Direction | Anticlockwise rotation |
Bore Diameter | 10.5 mm |
Number of Teeth | 9 |
Length | 247 mm |
Important compatibility info
Voltage | 12 V |
Rated Power | 1.8 kW |
Type | Starter |
Function | Starter |
Fastening hole angle measurement [Degree] | 45 ° |
Starter Type | Floating pinion |
Bore Diameter 2 | 10.5 mm |
Pinion Rest Position | 27 mm |
Connecting Angle | 45 ° |
Clamp | 50, 30 |
Position / Degree | links ° |
Flange Diameter | 76.2 mm |
Number of mounting bores | 2 |
Rotation Direction | Anticlockwise rotation |
Bore Diameter | 10.5 mm |
Number of Teeth | 9 |
Length | 247 mm |
Important compatibility info
Voltage | 12 V |
Rated Power | 1.2 kW |
Type | Starter |
Function | Starter |
Fastening hole angle measurement [Degree] | 40 ° |
Jaw opening angle measurement [Degree] | 142 ° |
Starter Type | Self-supporting |
Pinion Rest Position | -1.56 mm |
Connecting Angle | 40 ° |
Clamp | 30 |
Position / Degree | links ° |
Number of Thread Bores | 2 |
Flange Diameter | 65 mm |
Number of mounting bores | 2 |
Rotation Direction | Clockwise rotation |
Bore Diameter | 4 mm |
Thread Measurement 2 | M10x1.5 |
Thread Measurement 1 | M10x1.5 |
Number of Teeth | 12 |
Length | 201 mm |
Important compatibility info
Voltage | 12 V |
Rated Power | 1.2 kW |
Type | Starter |
Function | Starter |
Fastening hole angle measurement [Degree] | 40 ° |
Jaw opening angle measurement [Degree] | 142 ° |
Starter Type | Self-supporting |
Pinion Rest Position | -1.56 mm |
Connecting Angle | 40 ° |
Clamp | 30 |
Position / Degree | links ° |
Number of Thread Bores | 2 |
Flange Diameter | 65 mm |
Number of mounting bores | 2 |
Rotation Direction | Clockwise rotation |
Bore Diameter | 4 mm |
Thread Measurement 2 | M10x1.5 |
Thread Measurement 1 | M10x1.5 |
Number of Teeth | 12 |
Length | 201 mm |
Important compatibility info
Alternator Charge Current | 90 A |
Recommended additional repairs | V-Belt/V-Ribbed Belt |
Alternator type | excl. vacuum pump |
Function | Alternator |
Distance from pulley to alternator | 39.6 mm |
Clamp | B1+(M8),DFM,L |
Fastening Type | Double Pivot Lever |
Number of grooves | 6 |
Belt Pulley Diameter | 56 mm |
Rotation Direction | Clockwise rotation |
Plug Type ID | PL61 |
Pulleys | with multi-belt pulley |
Length | 187 mm |
Voltage | 14 V |
Type | Alternator |
Important compatibility info
Alternator Charge Current | 90 A |
Recommended additional repairs | V-Belt/V-Ribbed Belt |
Alternator type | excl. vacuum pump |
Function | Alternator |
Distance from pulley to alternator | 39.6 mm |
Clamp | B1+(M8),DFM,L |
Fastening Type | Double Pivot Lever |
Number of grooves | 6 |
Belt Pulley Diameter | 56 mm |
Rotation Direction | Clockwise rotation |
Plug Type ID | PL61 |
Pulleys | with multi-belt pulley |
Length | 187 mm |
Voltage | 14 V |
Type | Alternator |
Important compatibility info
Additional Information 2 | with seal ring |
Fuel Mixture Formation | Common Rail (CR) |
Function | Injector Nozzle |
Type | Injector Nozzle |
Important compatibility info
Additional Information 2 | with seal ring |
Fuel Mixture Formation | Common Rail (CR) |
Function | Injector Nozzle |
Type | Injector Nozzle |
Important compatibility info
Length | 205 mm |
Thread Size | M10 |
Voltage | 12 V |
Number of Teeth | 9. 10 |
Thread Measurement 1 | M10x1.5 |
Rotation Direction | Clockwise rotation |
Rated Power | 1.4 kW |
Flange Diameter | 70.5 mm |
Number of Thread Bores | 2 |
Position / Degree | rechts ° |
Clamp | 30 |
Connecting Angle | 40 ° |
Pinion Rest Position | -1.5 mm |
Starter Type | Self-supporting |
Function | Starter |
Jaw opening angle measurement [Degree] | 110 ° |
Fastening hole angle measurement [Degree] | 40 ° |
Type | Starter |
Important compatibility info
Length | 205 mm |
Thread Size | M10 |
Voltage | 12 V |
Number of Teeth | 9. 10 |
Thread Measurement 1 | M10x1.5 |
Rotation Direction | Clockwise rotation |
Rated Power | 1.4 kW |
Flange Diameter | 70.5 mm |
Number of Thread Bores | 2 |
Position / Degree | rechts ° |
Clamp | 30 |
Connecting Angle | 40 ° |
Pinion Rest Position | -1.5 mm |
Starter Type | Self-supporting |
Function | Starter |
Jaw opening angle measurement [Degree] | 110 ° |
Fastening hole angle measurement [Degree] | 40 ° |
Type | Starter |

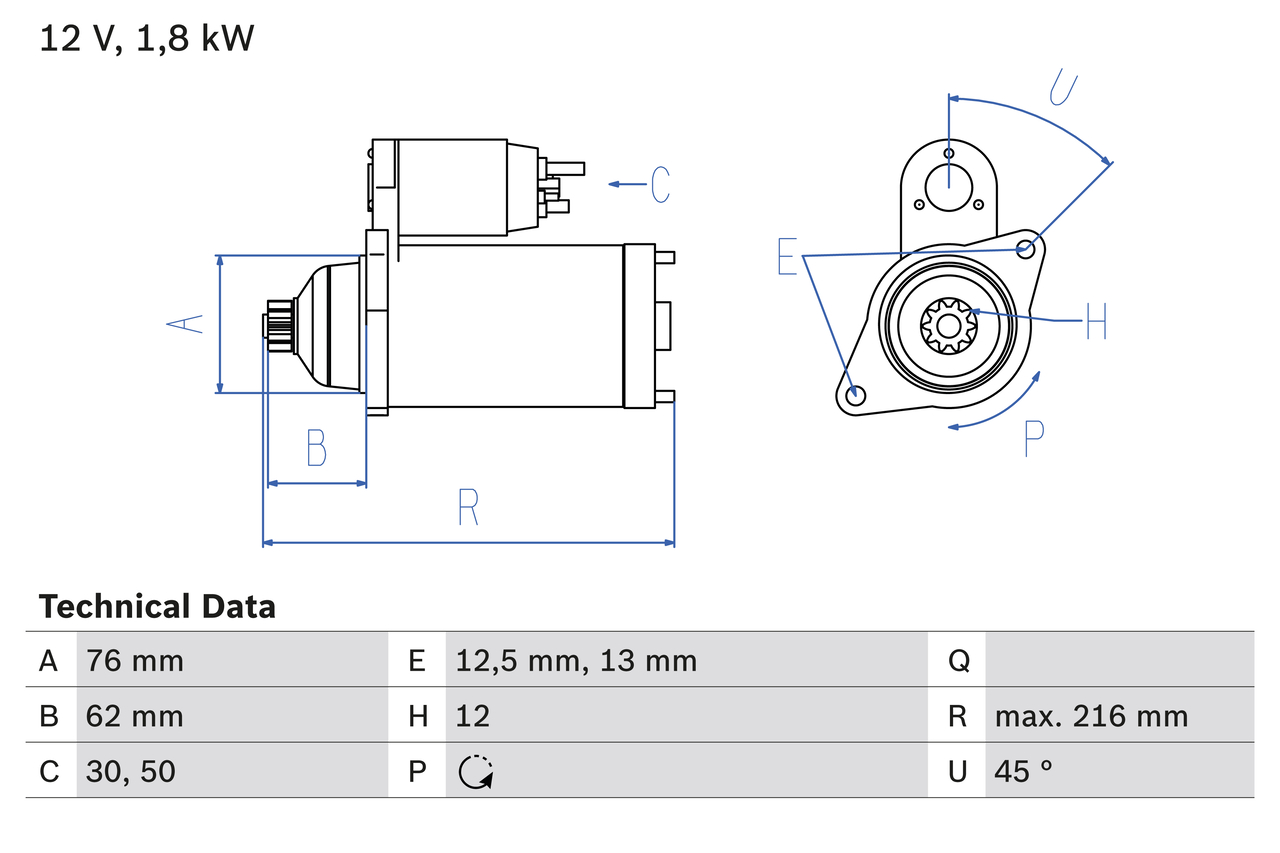

Important compatibility info
Clamp | 30,50 |
Position / Degree | rechts ° |
Length | 216 mm |
Voltage | 12 V |
Rotation Direction | Anticlockwise rotation |
Connecting Angle | 45 ° |
Function | Starter |
Rated Power | 1.8 kW |
Flange Diameter | 76 mm |
Fastening hole angle measurement [Degree] | 45 ° |
Bore Diameter 2 | 13 mm |
Starter Type | Floating pinion |
Pinion Rest Position | 62 mm |
Type | Starter |
Number of mounting bores | 2 |
Bore Diameter | 12.5 mm |
Important compatibility info
Clamp | 30,50 |
Position / Degree | rechts ° |
Length | 216 mm |
Voltage | 12 V |
Rotation Direction | Anticlockwise rotation |
Connecting Angle | 45 ° |
Function | Starter |
Rated Power | 1.8 kW |
Flange Diameter | 76 mm |
Fastening hole angle measurement [Degree] | 45 ° |
Bore Diameter 2 | 13 mm |
Starter Type | Floating pinion |
Pinion Rest Position | 62 mm |
Type | Starter |
Number of mounting bores | 2 |
Bore Diameter | 12.5 mm |






All the team are very helpful and checking parts are correct so do not have the hassle of returns which is great both sides, all can say 10000% all.....
Sept 2023
A genuine fantastic experience, good correspondence and helpful response to my questions, next day delivery and competitive price......
Sept 2023
First time I've ordered from this company, but won't be the last. Fast delivery and parts as ordered. Excellent service. Thank you.
Sept 2023
Fantastic service and great communication. Always quick to answer any questions or queries. Really fast delivery, would highly recommend.
Aug 2023
Customer service with Parts in motion has been excellent! Prices are keen and their postage service was spot on. In the event of an enquiry you.....
Aug 2023
