Car Parts & Accessories by Bosch

• Wireless connectivity: Conntect with Bosch Connected Repair or other workshop networks to help you work more efficiently
• Complete with storage case, two measuring cables, high-voltage probe, CD/DVD CompacSoft[plus] and Bluetooth USB stick: It’s the economical package for testing electrical drive systems
• Bluetooth interface: Ultimate convenience – wirelessly transmit test results to workshop PC or FSA series
• Lightweight (0.8 kg): The mobile solution around the workshop
• Compact (220 x 110 x 65 mm): Handy size for efficient working
• Combines as a test module with FSA 500: Enhance functionality and output to comprehensively document measurement test results
• Standalone tester: Get fast results with insulation and high-voltage testing for electric and hybrid drive

• High-voltage analysis: up to 600 V (TRMS)
• Insulation analysis:until 200 G Ω
• Insulation resistance: 50 - 100 - 250 - 500 - 1 000 V
• Test voltages: 1 mA
• Test current Measurement modes: t, PI, DAR
• Resistance measurement: 0.01 - 1 000 kOhm
• Continuity testing: 0.01 - 99.9 Ohm with test current 20 mA / 205 mA
• Capacitance measurement: 100 picofarad - 10 microfarad
• Data transmission: Bluetooth class I (up to 30 m range)
• Power supply: Batteries 5x IEC LR6 (AA)
• Operating temperature range -20 - 55 degree(C)
• Weight: 0.8 kg
• Dimensions: 220 x 92 x 50 mm

• Includes 3 years of free software updates
• Approximately 300 activations per full charge
• New features, vehicles and sensor coverage added regularly
• Supports the majority of OE and aftermarket programmable sensors for passenger car and LCV vehicles
• Intuitive, full-color display with easy vehicle lookup by make, model and year
• Relearn procedures for many of vehicles
• Programming a broad range of universal sensors
• Reading & cloning of wide range of OE-sensors
• Vehicle coverage of over 95%

• Easy access to BAT 6120 Help Center web page through QR code displayed on the screen
• Easy to use large 4 colour backlight LCD display including wall mount mode
• Fits underneath a car in show room
• Desk, floor or wall operations possible
• Flexible operation modes to fulfill customer needs
• Maximum power output: up to 1750 W
• Interface available in 26 languages
• 12 V Lead Acid Battery Charge. Charging Diagnosis / 12 V Lithium Battery Charge, Wake Up
• Supports Flooded/AGM/EFB/GEL/Lithium (LFP) Batteries
• Supports 120 A DC Continuous Output (AC120 V - 240 V, 25 degree Celcius)

• Max. Charge current intensity 12V: 120 A
• Length of the charging cable: 3 m (twin cable)
• Cross-section charging cable: 25 mm sq.
• Power input :120 - 240 V AC
• Weight (without charging and power cable): 8.5 kg
• Charging characteristic: up to 120 Amperes continuous. Battery types: UNI, WET, EFB, AGM, VRLA/GEL, LFP (LiFePO4)
• Backup mode: 12.0 V - 13.2 V adjustable, default 12.6 V / 10 A - 30 A adjustable power limit, default 20 A
• Floating-mode operation: 12.0 V - 13.2 V adjustable, default 13.5 V
• Max. 120 A continuous current
• Function temperature range: 0 – 40 degree(C)
• Main voltage: 220 - 240 V, 50/60 Hz
• Battery nominal voltage: 12 V
• Protection type (DIN 40050): IP 20 D
• Dimensions (W x H x D): 329 x 116 x 433 mm

Technical Information

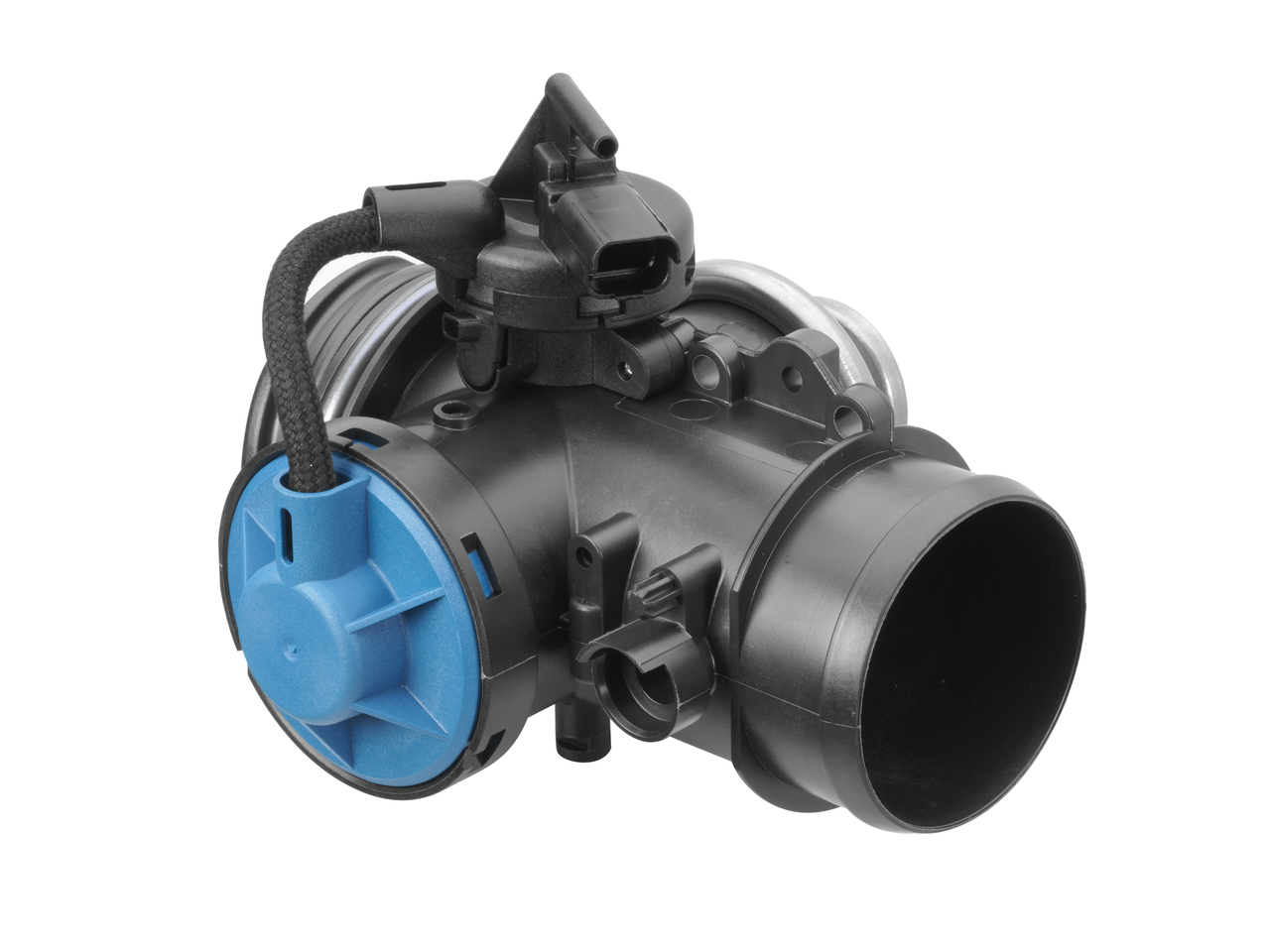

If 0 928 400 527 is installed as replacement for 0 928 400 314, the control unit must be re-programmed at a BMW workshop

Technical Information

If 0 928 400 527 is installed as replacement for 0 928 400 314, the control unit must be re-programmed at a BMW workshop
