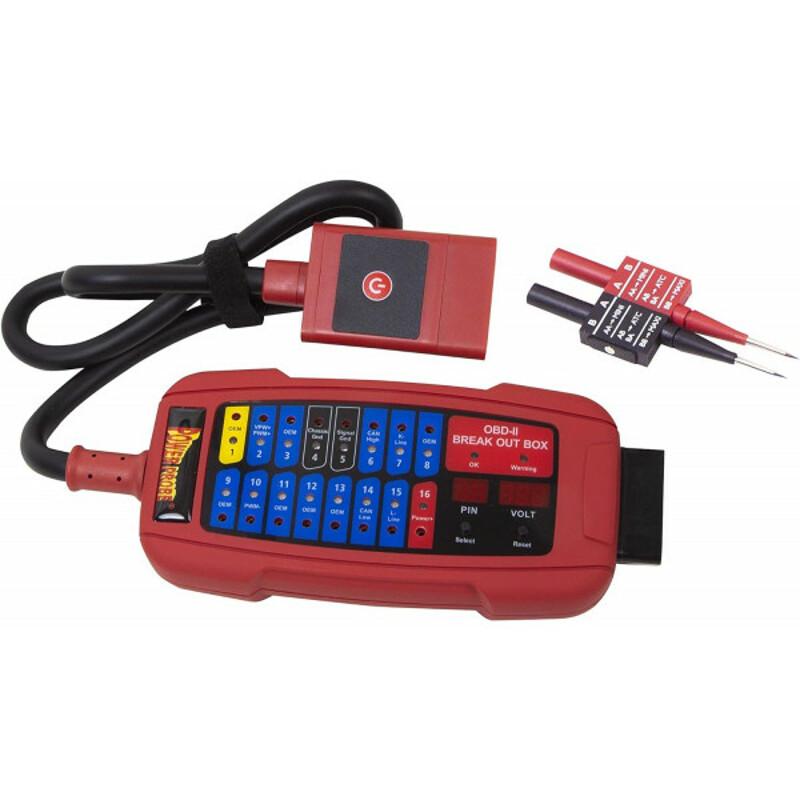

PowerProbe PPECB OBD-II BREAKOUT BOX POWER PROBE

The PPECB OBD-II Break Out Box is a robust diagnostic tool designed to ensure safe and effective vehicle diagnostics. It allows technicians to test the vehicle's OBD port for abnormalities, such as short circuits or reverse polarity, before connecting a diagnostic tool. With its advanced monitoring capabilities, it provides live feedback on voltages, protocols, and specific pin conditions. Key Features: Comprehensive Monitoring: Displays voltages for individual pins and detects abnormalities like short circuits and reverse polarity. Protocol Detection: Compatible with PWM, VPW, ISO, and CAN bus communication protocols. Voltage Alerts: Audio warnings for low (<11.8V) or high (>15.5V) voltage conditions to prevent equipment damage. Built-In Flashlight: Illuminates the DLC connector for easier access in low-light conditions. LED Indicators: Color-coded LEDs provide real-time feedback on voltage, protocol signals, and grounding. Reverse Polarity Protection: Safeguards devices by detecting and alerting improper polarity. User-Friendly Operation: Simple SELECT and RESET buttons for pin voltage testing and default settings. Specifications: Operating Voltage: 7.0V to 30.0V. Maximum Load: 3.0A. Display Resolution: 0.1V with a 3-digit LED. Temperature Range: Suitable for automotive conditions. Cable Length: 30 inches (0.8 meters). Certifications: FCC, CE. Applications: Diagnosing OBD port faults in 12V and 24V automotive systems. Monitoring voltage and communication protocols during repairs or programming. Protecting diagnostic tools from potential damage.
