Workshop Tools

• M1CA, M1CB, M1DA, M1DC, M1DD, M1DH, M1FA, M1JA, M1JC, M1JE, M1JH, M1JJ, M1JL, M1JM, M1JP, M1JU, M2DA, M2DB, M2DC, M2GA, M2GB, P4JA, P4JB, P4JC, P4JD, SFCA, SFCB, SFCC, SFCD, SFCE, SFCF, SFDB, SFJA, SFJB, SFJC, SFJD, SFJE, SFJH, SFJJ, SFJK, SFJL, SFJP, XMJA, XMJB, XMJC, XMJD, YYJA, YYJB, YYJC, YYJD, YYJE, YYJF, YYJG, XPJA, XPJB, XPJC, XPJD, XYJA, XYJB, XYJC, XYJD, XYJE
• C5265  Engine Setting & Locking Kit is an alternative to the larger CBIOSTPET Kit and is used on Belt-in-Oil engines, commonly referred to as 'wet belt' engines,  installed in 1.0 EcoBoost 3 Cylinder and 1.1 Ford models, and contains the essential tools required for Belt Removal/Installation and Valve Timing Check.
• Ford
• B-MAX, C-MAX ('11), C-MAX ('15), EcoSport, Fiesta ('13), Fiesta Active ('18), Focus ('11), Focus ('15), Focus ('19), Grand C-MAX ('11), Grand C-MAX ('15), Grand Tourneo Connect ('14), Mondeo ('15), Tourneo Connect ('14), Tourneo Courier (14), Transit Connect ('14), Transit Courier ('14)
• Equivalent to OE reference: 303-1605, 303-1604, 303-732, 303-1602

• Signal Locking will show the correct direction to a short to ground
• Signal distance bar indicates distance height from short to ground or open circuits
• LED light on receiver illuminates the work space area
• Longer 10-minute Auto shut off time

• Operating Voltage (Transmitter): 6V-48V DC
• Current Consumption (Transmitter): <200mA
• Operating Voltage (Receiver): 2 AAA batteries
• Signal Frequency: 4kHz polarized signal
• Circuit Testing Modes: Open circuit tracking
• short circuit tracking
• ground circuit tracking
• Operating Temperature: Up to 50°C
• Storage Temperature: Up to 70°C
• Maximum Humidity: 80% non-condensing
• Altitude Limit: <2000m
• Signal Detection: Indicates short and open circuits using visual and audio cues
• Sensitivity Adjustment: Adjustable for varying signal strengths
• Auto Shutoff: Receiver turns off after 10 minutes of inactivity
• Accessories Compatibility: Standard 4mm banana jack connectors for custom adapters
• Cable Length: 6m transmitter power cable for extended reach.

• This set also includes claw, clamp and spacers for dummy profiling which is suitable for Car, Van, Truck, Bus, Agricultural & Marine injector sizes (suitable for use where injector is held in place by clamp / claw / bridge. Collar system allows easy match
• This set could cover most modern car, van, truck, bus, agricultural and marine engines.
• Features 600psi gauge with large rubber bumper, straight and right angled quick connect fittings and an extensive range of spark/glow plug and injector adaptors.

• M9R- 610/613/615/630/692/700/780/782/784/786/788/721/722/724/740/742/744/750/760/761/762/763/805/808/812/814/815/816/800/802/820/824/830/832/833/834/835/836/838/845/849/855/856/858/859 M9T - 670/672/676/678/680/686/690/692/694/696/698/700/702/706/870/880/708/870/880/890/896/898/L2U/YS23DDT
• Diesel 2.0 / 2.3 dCi / CDTi / M9R / M9T (Chain) Engine Setting / Locking Kit - Nissan - Renault - Opel/Vauxhall
• Nissan, Renault, Vauxhall/Opel
• Nissan: NP300 Navara (D23)(15-), Primastar (X83), Qashqai/Qashqai+2 (J10), X-Trail (T31) (07-14) Renault: Espace/Grand Espace IV (J81)(02-15), Koleos (H45), Laguna II (B/K74)(01-07), Laguna III (B/D/K91)(07-15), Latitude (L43) Master III (E/F/H/J/U62)(10-), Megane II (B/C/E/G/K/L/S84)(02-10), Megane III (B/D/E/K95)(08-), Scenic/Grand Scenic II (J84)(03-09) Scenic/Grand Scenic III (J95)(09-), Trafic II (E/F/J83)(01-14), Vel Satis (B73), Vauxhall/Opel: Movano-B, Vivaro-A

• Tests Bad Grounds and Short Circuits
• Supplies Power and Ground
• Digital Voltmeter with Min/Max Voltage Capturing
• Navigation Menu for EZ Learning

• Voltage Detection Range: Supports low and high AC voltage detection
• LED Indicators: Visual indication of circuit status and voltage presence
• Non-Contact Operation: Safely detects voltage without direct contact
• Frequency Compatibility: Operates effectively at standard electrical frequencies
• Durability: Designed for robust field use with protective casing
• Ease of Use: Features ergonomic design and intuitive operation
• Compliance: Adheres to international electrical safety standards
• Battery Operated: Uses standard alkaline batteries for portability.

• 1 kit can cover various vehicles depending on make model & year of vehicle
• Product on Application
• TPMS valves used to replace damage valves

• The flaring tool set is made of durable steel for reliable and longlasting performance, high precision and safe to use. With a plastic case, compact and convenient to carry and store.
• When building car brake lines, the brake flaring tool kit adds a flare (makes tubing wider) to brake line end for a leakfree connection without hours of hand cramping or twisting exercises.
• The turret style design allows you to make those precision flares in a minimal time, which saves you the hassle of looking for small parts or losing them.
• This flaring tool is designed to be mounted in a vise, and the Thandle screw clamp securely keeps the die and tubing in place, so you can create flares quickly and easily.
• 45 degree tool set creates single, bubble, and double flares on steel, stainless steel, and soft metal (copper, aluminum) brake lines, transmission cooler lines, and fuel lines; For 3/16in., 1/4in., 5/16in., 3/8in. diameter lines.

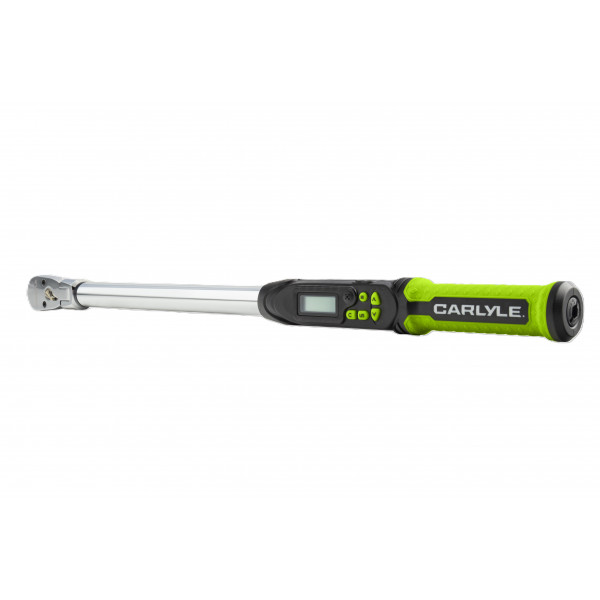

• Ability to measure in multiple units creates more versatile tool
• High torque accuracy allows for high degree of precision in working conditions
• High angle accuracy allows for high degree of precision in working conditions
• Enhances Torque & Angle Accuracy in Low Lit Areas
• Measures Ft-lbs, in-lbs, Degrees, N-m, kg-cm
• Torque Accuracy CW: +/- 2% - CCW +/-2%
• Angle Accuracy: +/- 1% Of Reading
• 3 Led Indicator

• Torque Accuracy CW: +/- 2% - CCW +/-2%
• 12.5 to 250.7 Lbf.ft
• 17 to 339Nm

• BC2X, BCCA, BCCB, BCCC, BCCD, BCDA, BCFA, BCFB, BCFC, BCFD, BCRA, BJFA, BJFB, BJFC, BJFD, BJRA, BJRB, BKFA, BKFB, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC BLFD, BLHA, BLRA, BLRB, YL2X, YLCA, YLCB, YLCC, YLDA, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCA, YMCB, YMCC, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YN2X, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA
• Edge, Focus ('19), Galaxy ('15), Mondeo ('15), Ranger ('12), S-MAX ('15), Tourneo Custom ('12), Transit ('14), Transit Custom ('12)
• Equivalent to OE Reference: 303-1637, 303-1643, 303-1650
• Ford

• C5200 Engine Setting & Locking Kit covers toothed belt-in-oil (commonly referred to as 'wet belt') removal and installation procedures on 2.0TDCi EcoBlue 'Panther' Diesel engines installed in Ford passenger cars and light commercial vehicles.

• 116i (E81/82/87/88)(04-14), 118i (E81/82/87/88)(04-14), 120i (E81/82/87/88)(04-14), 316i (E90/91/92/93)(05-14), 318i (E90/91/92/93)(05-14), 520i (E60/61(03-10)
• BMW
• Equivalent to OE Reference: 11-8-700, 11.5.120, 11.8.690, 11.8.710, 11.9.340
• N43 B16A/AA, N43 B16AA, N43 B16AA/O0, N43 B20A, N43 B20A/AA, N43 B20AA, N43 B20AY, N43 B20K0, N43 B20U0

• C5120A includes the tools required for cylinder head removal & installation, cylinder head gasket replacement, camshaft replacement and camshaft timing chain replacement, as well as adjustment and replacement of balance shaft and oil pump.

• Power Probe OBD II Breakout Testing Box
• Tests DLC (OBD port) for any abnormalities, such as shorting or reverse polarity at the pins before connecting other diagnostic equipment.
• quickly accss all 16 pins connections during repair and diagnosois of the vehicle

• Voltage Monitoring Range: 7.0V to 30.0V DC input
• Maximum Load: Up to 3.0A output
• Overload Protection: PTC self-healing fuse
• LED Displays: 3-digit resolution of 0.1V
• Banana Sockets: 16 outputs with 1.0mm diameter and LED indicators
• Protocols Detected: PWM (J1850)
• VPW (J1850)
• ISO 9141-2
• DIS/ISO 14230-4
• CAN bus (J-2284)
• Temperature Range: Suitable for automotive environments
• Humidity Tolerance: Less than 70%
• Cable Length: 30 inches (0.8 meters)
• Polarity Protection: Detects reverse polarity with red LED for pins 4 and 5
• Voltage Alerts: Slow beeps for low voltage (<11.8V for 12V systems)
• fast beeps for high voltage (>15.5V for 12V systems)
• Diagnostic Features: Monitors individual pins for voltage presence
• detects communication protocol signals
• DLC Connector Flashlight: Built-in light for easier connection
• Battery Type for Flashlight: CR1220 coin battery.

• 1/2in. Insulated T-handle Wrench 200 mm
• 1/2in. Ratchet Wrench 250 mm
• 1/2in. Extension Bar – 125 mm & 250 mm
• 1/2in. Bits Socket (120mm) – 4, 5, 6, 8 & 10 mm
• 1/2“ Hex Socket (55mm) – 10, 11, 12, 13, 14, 17, 19, 22, 24, 27 & 32 mm
• Packed in blow case and EVA foam
• Each tool is fully insulated to VDE and EN 60900 standards to protect from electric shocks up to 1500V DC and 1000V AC.
• Suitable for electricians(1000V AC safe live working).
• Manufactured from hardened and tempered Chrome vanadium steel.

General Information

These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• 1x Gates Mounting Tools, timing belt (GAT4776)
• 1x Gates Mounting Tools, timing belt (GAT4528)

• Fluids sold seperately J02230
• Added value to servicing & MOT work
• Thorough 2-stage solution
• Process complete in just over 1-hour
• Professional system for DPF cleaning
• High-quality long-lasting construction

• 1500Kg Hydraulic Unit Foot Operated Pedal
• Safer and easier than using a ratchet driven spring compressor
• Suitable for springs from 80mm to 175mm

• Spring Diameter 180 to 175mm
• Net Weight 33.5Kg
• Operation Foot Pedal

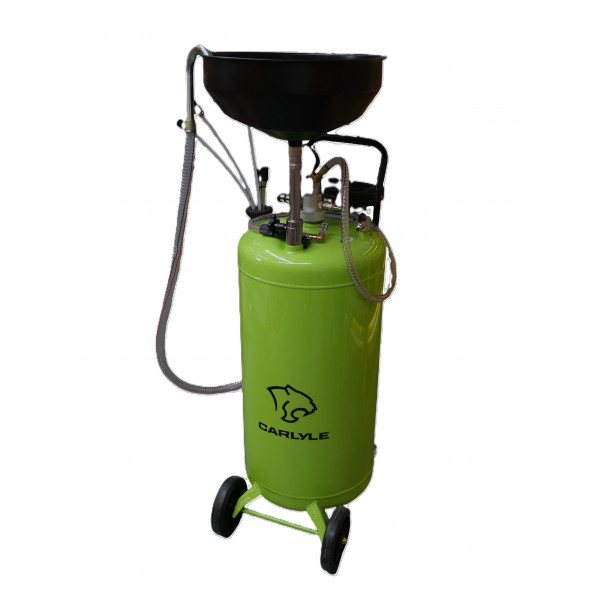

• Steel fabricated 90L reservoir.
• Height-adjustable
• Gravity feed reservoir
• Quick release oil dipstick probes

• Backlit LCD screen
• Available in 19 self-selectable languages
• Operating Voltage - 12V
• Test Time - 30 seconds
• Max Temperature - 320°C
• Brake Fluid Compatibility - DOT3, DOT4, DOT4+, DOT5.1
• Accurate, reliable and repeatable results

• UKCA/CE/EMC approved/RoHS compliant

• Citroën, Mini, Peugeot
• Citroën: Berlingo III, C3 III, C3 Picasso, C4 / C4 II, C4 Picasso/Grand Picasso II, C5 III, DS3/DS3 Cabrio, DS4, DS5, Mini: Clubman (R55) (07-14), Clubvan (R55) (12-14), Countryman (R60) (10-17), Coupe (R58) (11-15), Mini (R56/57) (06-15), Paceman (R61) (13-17) Roadster (R59) (12-15), Peugeot: 2008, 207, 207 cc, 208, 3008, 308, 308 (13-), 308 cc, 5008, 508, Partner III, RCZ
• Equivalent to OE Reference: 0197-A1, 0197-A2, 0197-A3, 0197-B, 0197-M, 11.9.340, 11.9.540, 11.9.550, 11.9.590
• N12, N12 B14, N12 B14AB, EP3 ( 8FN/8FS), EP3C (8FN/8FP/8FR), N14, N14 B16A, N14 B16CD, N14 B16TO, N12 B16A, N16, N16 B16A, N16 B16A.MO. N16 B16K0, N16 B16M0, N16 B16U0, EP6CDT, EP6CDT (5FA/5FE/5FM/5FN/5FV), EP6CDTE (5FR), EP6CDTM (5GY/5FM) EP6DT, EP6DT (5FT/5FX), EP6DTS (5FD/5FF), EP6FDT (5GW/5GZ), EP6FDTM (5GY), EP6, EP6 (5FP/5FS/5FW), EP6C, EP6C (5FK/5FS), EP6CB (5FK)

• C5020 contains the required tooling to cover engine timing checking and adjustment applications on the complete range of N12/N14/EP3/ EP3C/EP6/EP6C/EP6DT/DTS/CDT engines in BMW Mini and PSA models detailed.

• Measures current Flowing through fuses without removing the fuse (up to 80A)
• Fuse Voltage drop testing
• Guided automotive test mode
• AC/DC Voltage measurements up to 1000V
• Current measurements up to 30A
• Measures resistance, continuity and diode testing
• Frequency and duty cycle for PWM signals

• Measurement Capabilities: True RMS AC/DC voltage up to 1000V
• DC current up to 30A
• resistance up to 40.00MΩ
• Automotive-Specific Functions: Cranking voltage tests for 12V/24V starters
• alternator charging tests for normal/smart alternators
• Fuse Testing: Measures current through fuses without removal (2A to 80A)
• Frequency and Duty Cycle Measurement: Measures PWM signals up to 20.00kHz and duty cycles from 1%-99%
• Continuity and Diode Testing: Provides audible and visual feedback
• Display: 2.8” TFT color LCD with a user-friendly menu
• Power Supply: Powered by 3 AAA alkaline batteries
• Durability: Drop protection for up to 4 feet
• Safety Standards: CAT IV 600V
• CAT III 1000V rated
• Dimensions: 92.6mm x 205mm x 57.5mm
• weight: 588g
• Accessories: Includes 30A probe
• test leads
• fuse current probe set
• alligator clips.

• Added Convenience: The Power Probe DM500MAX Automotive Multimeter Voltage Tester has automatic back light that adjusts to changing light conditions; Drop resistant protective rubber holster
• Measuring Voltage: Accurately and automatically determine both AC and DC voltage from 0.01mV-1000V with 600V cat IV and 100V Cat III safety rating for testing vehicle batteries or home appliances
• Testing Current: Correctly calibrate amperage for both AC and DC currents with auto-range metering from 0.01mA-10.00A; Determine whether or not an outlet is active or if solar cells function properly
• For All Electrical Testing: Power Probe digital multimeters don’t just measure voltage and amperage but also resistance, frequency, continuity, capacitance, and even temperature
• Multimeter kit includes a DM500MAX multimeter, drop resistant rubber housing with kickstand, magnetic strap, 2 test leads (1 black, 1 red), 2 alligator clip lead attachments (1 black, 1 red), a USB plug, K-type thermocouple, and 4 AA batteries

• Measurement Capabilities: True RMS AC/DC voltage up to 1000V
• DC current up to 30A
• resistance up to 60MΩ
• Automotive Diagnostics: Cranking voltage tests
• alternator charging system tests for 12V/24V
• Fuse Current Testing: Measures current through fuses without removal (2A to 80A)
• Frequency and Duty Cycle: Measures PWM signals up to 40kHz
• duty cycle range: 1%-99%
• Thermal Imaging: Integrated infrared temperature measurement for advanced diagnostics
• Display: 3.5” high-resolution TFT color LCD with customizable interfaces
• Power Source: Rechargeable lithium-ion battery
• Durability: 4-foot drop protection
• IP54 dust and water resistance
• Safety Ratings: CAT IV 600V
• CAT III 1000V certified
• Data Storage: On-device memory for saving multiple test results.

• 1x Gates Mounting Tools, timing belt (GAT4640T7)
• 1x Gates Mounting Tools, timing belt (GAT4840V4)
• 1x Gates Mounting Tools, timing belt (GAT4909)
